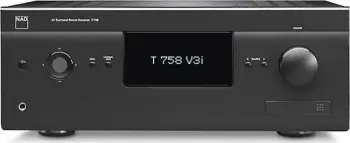

NAD T 758 V3i

    83
    Image cannot be found
    North America
    Image cannot be found
    Image cannot be found
    Image cannot be found

    Highlights

    • 7.1 Channels
    • 7.1 Channel Processing
    • 110 W (8 Ω, 1% THD, 2 channel driven)
    • Dolby Atmos, DTS:X
    • HDR10
    • 8K Passthrough
    • Wi-Fi, Bluetooth

    Disclosure: We earn money from the affiliate links to products associated with content in this article.

    Table of Contents
    1. Overview
    2. Pros and Cons
    3. 2020 Lineup
    4. Amplifier
    5. Speaker Configurations
    6. Immersive Audio Formats
    7. HDMI
    8. Room Calibration
    9. Multi-zone Playback
    10. Inputs and Outputs
    11. Evaluation
    12. Specifications

    1. Overview

    NAD T 758 V3i was introduced in 2020. It is equipped with 7 channel amplifier with 110 W (8 Ω, 1% THD, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 8K/60Hz and 4K/120Hz video signal.

    We evaluated the a/v receiver and gave 83 overall score out of 100. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

    Amplifier
    85
    Audio Features
    83
    Video Features
    86
    Connectivity
    77
    Zones
    82
    Radio
    82
    OVERALL
    83

    For more details about the ranking please go to    Evaluation section.

    2. Pros and Cons

    In this section we present pros and cons of NAD T 758 V3i.

    PROs

    •   High Power Output - 110 W
    •   Dolby Atmos
    •   DTS:X
    •   MQA Decoding
    •   Auto Speaker Calibration System with Mic.
    •   HDR10
    •   New HDCP Version
    •   8K Passthrough
    •   Wi-Fi
    •   Bluetooth
    •   BluOS
    •   USB Input
    •   RCA Pre-Outs
    •   Spotify
    •   Tidal

    CONs

    •   No Front Wide Channel Support
    •   No Dolby Atmos Height Virtualization
    •   No IMAX Enhanced
    •   No Auro 3D with Auro-Matic Upmixer
    •   No DSD via HDMI
    •   No HDR10+
    •   No Dolby Vision
    •   No eARC
    •   Does not Work with Amazon Alexa
    •   3 HDMI Inputs
    •   1 HDMI Outputs
    •   0 8K Input
    •   No Phono Input
    •   No Composite Video Inputs
    •   No Ethernet
    •   No Analog Tuner
    •   No Digital Radio
    •   No Pandora

    And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

    AVERAGE

    •   7.1 Channels
    •   7.1 Channel Processing
    •   RCA Line Inputs
    •   2 Zones

    3. NAD 2020 Lineup

    In 2020 NAD released 2 new receivers. Here is the lineup:

    NAD 2020 Lineup
    ModelChannelsPowerMax. Ch. Proc.Pre OutsHDR Price
    T 778 Image cannot be found
    Compare
    		9.2140 W11.211.2HDR10
    Dolby Vision
    T 758 V3i Image cannot be found 7.1110 W7.111.1HDR10

    You can view their side-by-side comparison here: NAD T 778 vs T 758 V3i.

    4. Amplifier

    7 channel NAD exclusive PowerDrive™ Amplifier

    NAD T 758 V3i features 7 channel power amplifier. It is rated at 110 W (8 Ω, 1% THD, 2 channel driven).

      AMPLIFIER
      Channels7.1
      Power Output110 W (8 Ω, 1% THD, 2 channel driven)
      Front Wide Channel Support
      Amplifier DesignNAD exclusive PowerDrive™ amplifier
      THX™ Certification
      Continuous 6 Ω Rated
      Bi-amp Capability

      5. Speaker Configurations

      NAD T 758 V3i's 7 channel amplifier can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • 5.1.2 with internal amplifier.
      • DTS:X Configurations: The speaker configurations for DTS:X are the same as for Dolby Atmos:
      • 5.1.2 with internal amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • 5.1, 7.1 with internal amplifier.
      • 2-ch Bi-Amp: NAD T 758 V3i allows you to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      6. Immersive Audio Formats

      Dolby Atmos

      NAD T 758 V3i supports Dolby Atmos with Surround Upmixer.

      • Surround Upmixer: If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.

      DTS:X

      NAD T 758 V3i supports DTS:X with Neural:X.

      • Neural:X is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • DTS Dialog Control: This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.
      DECODING
      Dolby Atmos up to 5.1.2
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      DTS:X up to 5.1.2
      DTS Neural:X
      DTS Virtual:X
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer
      MQA Decoding

      7. HDMI

      NAD T 758 V3i features 3 HDMI inputs. It has 1 output.

      • 8K/60Hz and 4K/120Hz Passthrough: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
      • HDCP 2.2 Copy Protection: All inputs and outputs are HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: NAD T 758 V3i is able to pass 3D video through HDMI.
      andh3>HDR (High Dynamic Range)

      NAD T 758 V3i supports HDR (high dynamic range) video formats such as HDR10 via HDMI ports. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.



      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      Dolby Vision
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      DSC (Display Stream Compression)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4
      Video Signal Upscaling

      8. Room Calibration

      NAD T 758 V3i comes with Dirac Live™ room correction system and includes the calibration microphone.

      • Dirac Live: The interaction between your sound system and the physical layout of your room has a huge impact on sound quality. Dirac Live™ Room Correction applies state-of-the-art, patented algorithms to analyze and digitally reduce room impact and enhance speaker performance. Dirac Live delivers a larger sweet spot, accurate staging, clarity, voice intelligibility, and a deeper, tighter bass not otherwise possible. Fully tunable to your preference.

      9. Multi-zone Playback

      NAD T 758 V3i offers multi-zone playback which allows you to play different input sources in 2 different rooms.


      Zone 2

      • Powered Zone 2: You can use the unit's 2 amplifier channels by connecting Zone 2 speakers directly to the speaker terminals. The remaining 5 channels will be left for main zone amplification.
      • Audio Pre Output: If you have a dedicated power amplifier for Zone 2 you can connect it to the a/v receiver via pre outs and control volume from the a/v receiver.
      ZONES
      Number of Zones2
      Powered Zones 2
      Zone 2 OutsPre Out
      RS-232C Interface
      +12V Trigger Output1
      Remote (IR) Input/Output1 / 2
      Check out the receivers which are frequently compared to NAD T 758 V3i.
      Yamaha RX-A4A
      Image cannot be found

      7.2 Channels

      NAD T 778
      Image cannot be found

      9.2 Channels

      Denon AVC-X3800H
      Image cannot be found

      9.4 Channels

      Marantz Cinema 50
      Image cannot be found

      9.4 Channels

      Onkyo TX-RZ50
      Image cannot be found

      9.2 Channels

      Yamaha RX-A2A
      Image cannot be found

      7.2 Channels

      Yamaha RX-V6A
      Image cannot be found

      7.2 Channels

      Anthem MRX 540 8K
      Image cannot be found

      5.2 Channels

      Denon AVR-X4800H
      Image cannot be found

      9.4 Channels

      Yamaha RX-A6A
      Image cannot be found

      9.2 Channels

      Yamaha RX-V4A
      Image cannot be found

      5.2 Channels

      Yamaha RX-A8A
      Image cannot be found

      11.2 Channels

      10. Inputs and Outputs

      Audio

      • Analog Pre-Outs: NAD T 758 V3i has 11.1 preamplifier outputs which allow you to connect the a/v receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the a/v receiver to power the rest.
      • Analog Line Inputs: There are 4 line inputs for analog audio connection.
      • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available for digital audio connection.
      • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel.

      Video

      • HDMI:
      • Inputs: 3   Outputs: 1
        8K Inputs: 0

      Front A/V Inputs

      • RCA Audio
      Image cannot be found
      Image cannot be found
      TERMINALS
      HDMI Inputs3
      HDMI Outputs1
      8K Inputs
      USB Input1 (Rear)
      Optical Inputs2
      Optical Outputs
      Coaxial Inputs2
      RCA Line Inputs4 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs11.1
      XLR Pre-outs
      Composite Video Inputs
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs

      11. Evaluation

      We evaluate NAD T 758 V3i and give score of 83 out of 100. We also give separate scores for 6 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      OVERALL
      83

      Amplifier

      EXCELLENT
      85

      We give NAD T 758 V3i a score of 85 for Amplifier features.

      •   7.1 Channels
      •   High Power Output - 110 W

      Audio Features

      GOOD
      83

      We give NAD T 758 V3i a score of 83 for Audio Features features.

      •   7.1 Channels
      •   No Front Wide Channel Support
      •   7.1 Channel Processing
      •   Dolby Atmos
      •   No Dolby Atmos Height Virtualization
      •   DTS:X
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   MQA Decoding
      •   No DSD via HDMI

      Video Features

      EXCELLENT
      86

      We give NAD T 758 V3i a score of 86 for Video Features features.

      •   HDR10
      •   No HDR10+
      •   No Dolby Vision
      •   8K Passthrough

      Connectivity

      GOOD
      77

      We give NAD T 758 V3i a score of 77 for Connectivity features.

      •   No eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   BluOS
      •   3 HDMI Inputs
      •   1 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   RCA Line Inputs
      •   No Phono Input
      •   RCA Pre-Outs
      •   No Composite Video Inputs
      •   No Ethernet

      Zones

      GOOD
      82

      We give NAD T 758 V3i a score of 82 for Zones features.

      •   2 Zones

      Radio

      GOOD
      82

      We give NAD T 758 V3i a score of 82 for Radio features.

      •   No Analog Tuner
      •   No Pandora
      •   Spotify
      •   Tidal

      12. Specifications

      GENERAL
      BrandNAD
      ModelT 758 V3i
      TypeA/V Receiver
      CountryNorth America
      Release Year2020
      AMPLIFIER
      Channels7.1
      Power Output110 W (8 Ω, 1% THD, 2 channel driven)
      Front Wide Channel Support
      Amplifier DesignNAD exclusive PowerDrive™ amplifier
      THX™ Certification
      Continuous 6 Ω Rated
      Bi-amp Capability
      AUDIO FEATURES
      Maximum Channel Processing7.1
      Air Studios Monitor Certification
      Dolby Atmos up to 5.1.2
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      DTS:X up to 5.1.2
      DTS Neural:X
      DTS Virtual:X
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer
      MQA Decoding
      PCM 2-ch/Multi-ch Input
      Network Audio FormatsMP3, AAC, WMA, OGG, FLAC, ALAC, WMA-L, MQA, WAV, AIFF
      Music Playback via USBMP3, AAC, WMA, OGG, FLAC, ALAC, WMA-L, MQA, WAV, AIFF
      High Resolution Music Playback via USB and/or Network up to 192 kHz
      High Resolution Audio Formats via USBFLAC, WAV, AIFF
      Gapless Playback
      DSD via HDMI
      DSD via USB
      USB DAC
      DTS Dialogue Control
      Dialog Enhancement
      Dialog Level Adjustment
      Dialog normalization
      Dialogue Lift
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Direct Mode
      CALIBRATION
      Auto Speaker Calibration System with Mic. Dirac Live™
      VIDEO FEATURES
      HDR10
      HDR10+
      Dynamic HDR
      Dolby Vision
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      DSC (Display Stream Compression)
      3-D Ready
      Video Signal Passthroughup to 4K 50/60Hz 4:4:4
      Video Signal Upscaling
      isf Certified Calibration Control
      CONNECTIVITY
      Wi-Fi via dongle
      Bluetooth via USB micro adapter
      Works with Amazon Alexa
      Google Assistant
      Chromecast Built-In
      Apple Siri
      Works with SonoS
      BluOS
      DTS Play-Fi
      AirPlay AirPlay 2
      Apple Product Connection iPod, iPhone and iPad
      Remote App free BluOS controller app for iOS and Android devices
      TERMINALS
      HDMI Inputs3
      HDMI Outputs1
      8K Inputs
      USB Input1 (Rear)
      Optical Inputs2
      Optical Outputs
      Coaxial Inputs2
      RCA Line Inputs4 (1 front)
      RCA Line Outputs
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs11.1
      XLR Pre-outs
      Composite Video Inputs
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs
      Ethernet
      PC In
      Front A/V InputsRCA Audio
      Speaker A/B
      Headphone Out6.3 mm (1/4")
      Detachable Power Cord
      ZONES
      Number of Zones2
      Powered Zones 2
      Zone 2 OutsPre Out
      RS-232C Interface
      +12V Trigger Output1
      Remote (IR) Input/Output1 / 2
      MISCELLANEOUS
      Remote ControllerZR 7
      RADIO
      Analog Tuner
      Digital Radio
      Internet Radio TuneIn, iHeartRadio, Calm Radio, Radio Paradise, Slacker Radio
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      SiriusXM
      CONSTRUCTION
      ConstructionModular Design
      Speaker Terminals7
      Large Speaker Terminals7
      POWER
      Power SupplyAC 120 V, 60 Hz, 5 A
      PHYSICAL
      Dimensions (W x H x D)435 mm x 172 mm x 397 mm
      17-1/8" x 6-13/16" x 15-11/16"
      Weight15.4 kg (33.9 lbs)
      Weight of Package18.0 kg (39.6 lbs)
      SPECIFICATIONS
      Power Output (8 Ω, 1 kHz, 2 channel Driven, FTC)110 W (1% THD)
      Multi Channel Simultaneous Drive7 x 60 W (0.05% THD, 20 - 20 kHz)
      Dynamic Power per Channel (4 Ω, Front)243 W
      Dynamic Power per Channel (8 Ω, Front)137 W
      THD0.08% (20 Hz-20 kHz, rated power)
      0.006% at 2 Vout
      Analog Distortion0.0008
      Damping Factor300 (8 Ω)
      Input Sensitivity and Impedance (Line)750 mV/50 kΩ
      S/N Ratio (Line, IHF-A)100 dB (ref. rated power at 8 Ω, A-WTD)
      S/N Ratio (Line, EIA, at 1 W (1 kHz))90 dB (ref. 1 W at 8 Ω, A-WTD)
      Frequency Response (Analog In)±0.8 dB (ref. 1 kHz, 20 Hz - 20 kHz)
      Warranty2 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
