Denon AVC-X3800H vs Denon AVR-X2800H

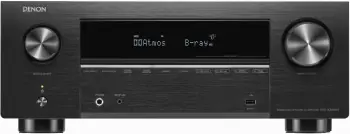

      Denon AVC-X3800H

      Denon AVR-X2800H
      91
      Image cannot be found
      89
      Image cannot be found
      USA
      UK
      USA
      UK
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found

      Highlights

      • 9.4 Channels
      • 11.4 Channel Processing
      • 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • HDMI 2.1
      • Dolby Atmos, DTS:X, Auro 3D
      • HDR10, HDR10+, Dolby Vision
      • 8K Passthrough, 8K Upscaling
      • Wi-Fi, Bluetooth, Ethernet
      • Phono Input

      Highlights

      • 7.2 Channels
      • 7.1 Channel Processing
      • 95 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • HDMI 2.1
      • Dolby Atmos, DTS:X
      • HDR10, HDR10+, Dolby Vision
      • 8K Passthrough, 8K Upscaling
      • Wi-Fi, Bluetooth, Ethernet
      • Phono Input

      Disclosure: We earn money from the affiliate links to products associated with content in this article.

      Table of Contents
      1. Overview
      2. Pros and Cons
      3. Advantage of Denon AVC-X3800H
      4. Advantage of Denon AVR-X2800H
      5. Common Strengths and Weaknesses
      6. Amplifier
      7. Speaker Configurations
      8. Immersive Audio Formats
      9. HDMI
      10. Inputs and Outputs
      11. Evaluations
      12. Specifications

      1. Overview

      Here we are comparing Denon AVC-X3800H to Denon AVR-X2800H to reveal their common strengths and weaknesses as well as the differences between them which will help you in making a correct decision before the purchase. The Denon AVC-X3800H has 9 channel and the Denon AVR-X2800H has 7 channel amplifiers with Denon AVC-X3800H's being more powerful.


      Denon AVC-X3800H Denon AVR-X2800H

      Denon AVC-X3800H was introduced in 2022. It is equipped with 9 channel amplifier with 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 11.4 maximum channel processing. It supports Dolby Atmos, DTS:X and Auro-3D, passes 8K/60Hz and 4K/120Hz and upscales up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.

      Denon AVR-X2800H was introduced in 2022. It is equipped with 7 channel amplifier with 95 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 7.1 maximum channel processing. It supports Dolby Atmos and DTS:X, passes 8K/60Hz and 4K/120Hz and upscales up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.

      We evaluated Denon AVC-X3800H and Denon AVR-X2800H and gave them scores of 91 and 89 out of 100 recpectively. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

      Denon AVC-X3800H

      Denon AVR-X2800H

      Amplifier
      89
      Amplifier
      87
      Audio Features
      93
      Audio Features
      86
      Video Features
      100
      Video Features
      100
      Connectivity
      90
      Connectivity
      86
      Zones
      84
      Zones
      81
      Radio
      82
      Radio
      98
      OVERALL
      91
      OVERALL
      89

      For more details about the ranking please go to    Evaluations section.

      2. Pros and Cons

      In this section we present pros and cons of Denon AVC-X3800H and Denon AVR-X2800H.

      PROS

      Denon AVC-X3800H

      Denon AVR-X2800H

      •   11.4 Channel Processing
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   HDR10
      •   HDR10+
      •   Dolby Vision
      •   HDMI 2.1
      •   eARC
      •   New HDCP Version
      •   Auto Low Latency Mode Pass-through
      •   VRR
      •   QFT
      •   8K Passthrough
      •   8K Upscaling
      •   Wi-Fi
      •   Bluetooth
      •   Works with Amazon Alexa
      •   Google Assistant
      •   HEOS
      •   4 HDMI Outputs
      •   6 8K Inputs
      •   USB Input
      •   Many RCA Line Inputs
      •   Phono Input
      •   RCA Pre-Outs
      •   Ethernet
      •   Spotify
      •   Tidal
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   Auto Speaker Calibration System with Mic.
      •   HDR10
      •   HDR10+
      •   Dolby Vision
      •   HDMI 2.1
      •   eARC
      •   New HDCP Version
      •   Auto Low Latency Mode Pass-through
      •   VRR
      •   QFT
      •   8K Passthrough
      •   8K Upscaling
      •   Wi-Fi
      •   Bluetooth
      •   Works with Amazon Alexa
      •   Google Assistant
      •   HEOS
      •   3 8K Inputs
      •   USB Input
      •   Phono Input
      •   Ethernet
      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   Tidal

      CONS

      Denon AVC-X3800H

      Denon AVR-X2800H

      •   No Front Wide Channel Support
      •   No Composite Video Inputs
      •   No Analog Tuner
      •   No Digital Radio
      •   No Pandora
      •   No Front Wide Channel Support
      •   No IMAX Enhanced
      •   No Auro 3D with Auro-Matic Upmixer
      •   No DSD via HDMI
      •   No RCA Pre-Outs
      •   No Composite Video Inputs
      •   No Digital Radio


      And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

      AVERAGE

      Denon AVC-X3800H

      Denon AVR-X2800H

      •   9.4 Channels
      •   Power Output - 105 W
      •   6 HDMI Inputs
      •   2 Zones
      •   Bluetooth 4․2
      •   7.2 Channels
      •   Power Output - 95 W
      •   7.1 Channel Processing
      •   6 HDMI Inputs
      •   2 HDMI Outputs
      •   RCA Line Inputs
      •   2 Zones
      •   Bluetooth 4․2

      3. Advantage of Denon AVC-X3800H

      This section shows those features and specifications which are the reason to choose Denon AVC-X3800H over Denon AVR-X2800H.

      Check the Price

      Denon AVC-X3800H
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Denon AVC-X3800H vs Denon AVR-X2800H
      More Channels 9.4 vs 7.2
      Higher Power Output 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) vs 95 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      More Channel Processing 11.4 vs 7.1
      IMAX Enhanced vs
      Auro 3D with Auro-Matic Upmixer Built-In vs
      DSD via HDMI 2-ch/Multi-ch Input vs
      Audyssey LFC vs
      Audyssey Sub EQ HT vs
      Independent Subwoofer Outputs vs
      More Advanced Auto Speaker Calibration System Audyssey MultEQ XT32 and Dirac Live (upgrade) vs Audyssey MultEQ XT
      More HDMI Outputs 3 (2 x 8K for MAIN, 1 x 4K for ZONE2) vs 2 x 8K (simultaneous)
      More 8K Inputs 6 vs 3
      More Coaxial Inputs/Outputs 2 vs 1
      More RCA Line Inputs 6 vs 4
      More RCA Pre-Outs 11.4 vs 0.2
      Zone 2 Outs HDMI, Pre Out vs Pre Out
      +12V Trigger Output 1 vs
      More GUI Languages 9 vs 3
      More Speaker Terminals 11 vs 7
      More Large Speaker Terminals 11 vs 7
      Bigger Power Supply 660 W vs 500 W
      Higher Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC) 105 W (0.08% THD) vs 95 W (0.08% THD)
      Higher Power Output (6 Ω, 1 kHz, 2 channel driven, FTC) 135 W (0.7% THD) vs 125 W (0.7% THD)
      Higher Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA) 215 W (10% THD) vs 185 W (10% THD)
      Higher Power Output (6 Ω, 1 kHz, 1 channel driven, IEC) 180 W (1% THD) vs 150 W (1% THD)
      Check out other receivers which are frequently compared to Denon AVC-X3800H.
      Yamaha RX-A4A
      Image cannot be found

      7.2 channel

      110 W

      Onkyo TX-RZ50
      Image cannot be found

      9.2 channel

      120 W

      Denon AVR-X4800H
      Image cannot be found

      9.4 channel

      125 W

      Denon AVR-X3700H
      Image cannot be found

      9.2 channel

      105 W

      Denon AVR-X3800H
      Image cannot be found

      9.4 channel

      105 W

      Denon AVC-X4800H
      Image cannot be found

      9.4 channel

      125 W

      Yamaha RX-A6A
      Image cannot be found

      9.2 channel

      150 W

      Marantz Cinema 50
      Image cannot be found

      9.4 channel

      110 W

      Onkyo TX-NR7100
      Image cannot be found

      9.2 channel

      100 W

      Pioneer VSX-LX505
      Image cannot be found

      9.2 channel

      120 W

      Marantz Cinema 60
      Image cannot be found

      7.2 channel

      100 W

      Denon AVR-X1800H
      Image cannot be found

      7.2 channel

      80 W

      4. Advantage of Denon AVR-X2800H

      This section shows those features and specifications which are the reason to choose Denon AVR-X2800H over Denon AVC-X3800H.

      Check the Price

      Denon AVR-X2800H
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Denon AVC-X3800H vs Denon AVR-X2800H
      Analog Tuner vs FM/AM
      Pandora vs
      SiriusXM vs
      Check out other receivers which are frequently compared to Denon AVR-X2800H.
      Denon AVR-X1800H
      Image cannot be found

      7.2 channel

      95 W

      Denon AVR-S970H
      Image cannot be found

      7.2 channel

      90 W

      Yamaha RX-V6A
      Image cannot be found

      7.2 channel

      100 W

      Onkyo TX-NR6100
      Image cannot be found

      7.2 channel

      100 W

      Denon AVR-X1700H
      Image cannot be found

      7.2 channel

      80 W

      Marantz Cinema 60
      Image cannot be found

      7.2 channel

      100 W

      Denon AVR-X3800H
      Image cannot be found

      9.4 channel

      105 W

      Denon AVR-X2700H
      Image cannot be found

      7.2 channel

      95 W

      Pioneer VSX-935
      Image cannot be found

      7.2 channel

      80 W

      Sony STR-AN1000
      Image cannot be found

      7.2 channel

      100 W

      Denon AVR-S760H
      Image cannot be found

      7.2 channel

      75 W

      Yamaha RX-A2A
      Image cannot be found

      7.2 channel

      100 W

      5. Common Strengths and Weaknesses

      We already listed pros and cons of each model. However, you may also find useful to look at their common strengths and weaknesses shown side-by-side.

      STRENGTHS Denon AVC-X3800H Denon AVR-X2800H
        Dolby Atmos up to 7.1.4 up to 5.1.2
        Dolby Atmos Height Virtualization
        DTS:X up to 7.1.4 up to 5.1.2
        Auto Speaker Calibration System with Mic. Audyssey MultEQ XT32 and Dirac Live (upgrade) Audyssey MultEQ XT
        HDR10
        HDR10+
        Dolby Vision
        HDMI Version2.12.1
        eARC
        New HDCP Version2.32.3
        Auto Low Latency Mode Pass-through
        VRR
        QFT
        8K Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4up to 8K 50/60Hz and 4K 100/120Hz 4:4:4
        8K Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 up to 8K 50/60Hz and 4K 100/120Hz 4:4:4
        Wi-Fi
        Bluetooth SBC SBC
        Works with Amazon Alexa
        Google Assistant
        HEOS
        Many 8K Inputs63
        USB Input1 Front for USB memory1 Front for USB memory
        Phono Input
        Ethernet
        Spotify
        Tidal
      WEAKNESSES Denon AVC-X3800H Denon AVR-X2800H
        No Front Wide Channel Support
        No Composite Video Inputs
        No Digital Radio

      6. Amplifier

      Denon AVC-X3800H Denon AVR-X2800H

      9 channel Amplifier: Denon AVC-X3800H features 9 channel power amplifier. It is rated at 105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      7 channel Amplifier: Denon AVR-X2800H features 7 channel power amplifier. It is rated at 95 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.


        AMPLIFIER Denon AVC-X3800H Denon AVR-X2800H
        Channels9.47.2
        Power Output105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)95 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Front Wide Channel Support
        Discrete Amplification
        THX™ Certification
        Continuous 6 Ω Rated
        Certified 4 Ω Performance
        Mono Block Power Amplifier Construction
        Bi-amp Capability assignable assignable

        Check the Price

        Denon AVC-X3800H
        Image cannot be found
        Image cannot be found
        Image cannot be found

        7. Speaker Configurations

        Denon AVC-X3800H's and Denon AVR-X2800H's amplifiers can be assigned for different speaker configurations.

        • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
        • Denon AVC-X3800H: 5.4.2, 5.4.4, 7.4.2 with internal amplifier and 7.4.4 with addition of external 2 channel amplifier.
        • Denon AVR-X2800H: 5.2.2 with internal amplifier.
        • DTS:X Configurations: The following speaker configurations are supported for DTS:X:
        • Denon AVC-X3800H: The speaker configurations for DTS:X are the same as for Dolby Atmos - 5.4.2, 5.4.4, 7.4.2 with internal amplifier and 7.4.4 with addition of external 2 channel amplifier.
        • Denon AVR-X2800H: The speaker configurations for DTS:X are the same as for Dolby Atmos - 5.2.2 with internal amplifier.
        • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
        • Denon AVC-X3800H: 5.4, 7.4 with internal amplifier.
        • Denon AVR-X2800H: 5.2, 7.2 with internal amplifier.
        • 2-ch Bi-Amp: Both models are able to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

        8. Immersive Audio Formats

        Dolby Atmos

        Denon AVC-X3800H and Denon AVR-X2800H support Dolby Atmos.

        • Dolby Surround Upmixer: Both models support Dolby Surround Upmixer. If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
        • Dolby Atmos Height Virtualization: Both models support Dolby Atmos Height Virtualization which is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.

        DTS:X

        Denon AVC-X3800H and Denon AVR-X2800H support DTS:X.

        • DTS Neural:X: Both models feature DTS Neural:X which is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
        • DTS Virtual:X: Both models feature DTS Virtual:X which bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
        • DTS Dialog Control: Both models have DTS Dialog Control. This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

        Auro-3D

        Denon AVC-X3800H supports Auro-3D.

        • Auro-Matic upmixer: Auro-Matic upmixer takes non Auro-3D sound and upmixes to the current speaker configuration.

        IMAX Enhanced

        Denon AVC-X3800H is IMAX Enhanced certified. To qualify for IMAX Enhanced certification, 4K HDR televisions, projectors, sound bars, a/v receivers, loudspeakers, powered subwoofers and other premium home entertainment devices must meet carefully prescribed performance requirements established by IMAX, DTS and Hollywood's leading experts.

        • What makes an IMAX Enhanced A/V receiver different from an A/V receiver with DTS:X technology? DTS:X technology is commonly found in most multi-channel A/V receivers on the market today. All IMAX Enhanced A/V receivers include DTS:X technology and deliver additional features, such as auto-sensing of IMAX Enhanced content, via IMAX Mode. IMAX Mode indicates that your A/V receiver supports fully immersive IMAX signature sound.
        AUDIO DECODING Denon AVC-X3800H Denon AVR-X2800H
        Dolby Atmos up to 7.1.4 up to 5.1.2
        Dolby Atmos Height Virtualization
        Dolby Atmos Music
        Dolby TrueHD
        Dolby Digital Plus
        Dolby Surround Upmixer
        Dolby Pro Logic
        Dolby Digital EX
        Surround EX
        DTS:X up to 7.1.4 up to 5.1.2
        DTS Neural:X
        DTS Virtual:X
        DTS Neo
        DTS-HD Master Audio
        DTS-HD High Resolution Audio
        DTS 96/24
        DTS Express
        DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
        IMAX Enhanced
        Auro 3D with Auro-Matic Upmixer Built-In

        Check the Price

        Denon AVR-X2800H
        Image cannot be found
        Image cannot be found
        Image cannot be found

        9. HDMI 2.1

        Denon AVC-X3800H comes with 6 HDMI 2.1 inputs with 8K support. It has 3 outputs - 2 x 8K for MAIN and 1 x 4K for ZONE2.

        Denon AVR-X2800H comes with 3 HDMI 2.1 inputs with 8K support and 3 inputs with 4K support. It has 2 outputs which work parallelly and output the same signal.

        • 8K/60Hz and 4K/120Hz Passthrough on Denon AVC-X3800H: All inputs pass up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.
          8K/60Hz and 4K/120Hz Passthrough on Denon AVR-X2800H: 3 out of 6 inputs pass up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 and the rest of the inputs pass up to 4K 50/60Hz 4:4:4 video signal.
        • 8K Upscaling: Both receivers can upscale up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 from HDMI sources.
        • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35% (available on both models).
        • HDCP 2.3 Copy Protection: Both receivers are HDCP 2.3 compliant which is a requirement for 4K/HDR copy-protected content transmission.
        • 3D Ready: Both receivers are able to pass 3D video through HDMI.

        HDR (High Dynamic Range)

        Both receivers support HDR10, HDR10+, Dolby Vision, Dynamic HDR and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


        Enhanced Audio Return Channel (eARC)

        Denon AVC-X3800H and Denon AVR-X2800H support Audio Return Channel (ARC) which allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.


        Gaming Features

        Both receivers support Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR) and Quick Frame Transport (QFT) for lag-free and smooth gaming.



        VIDEO FEATURES Denon AVC-X3800H Denon AVR-X2800H
        HDR10
        HDR10+
        Dynamic HDR
        BT.2020 color space
        Dolby Vision
        HLG (Hybrid Log Gamma)
        HDMI Version2.12.1
        HDBaseT Compatible
        Enhanced Audio Return Channel (eARC)
        HDCP Version2.32.3
        QMS (Quick Media Switching)
        ALLM (Auto Low Latency Mode)
        VRR (Variable Refresh Rate)
        QFT (Quick Frame transport)
        3-D Ready
        Video Signal Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4up to 8K 50/60Hz and 4K 100/120Hz 4:4:4
        Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 up to 8K 50/60Hz and 4K 100/120Hz 4:4:4

        Check the Price

        Denon AVC-X3800H
        Image cannot be found
        Image cannot be found
        Image cannot be found

        10. Inputs and Outputs

        Audio

        • Phono Input: There is an MM phono input on Denon AVC-X3800H and Denon AVR-X2800H with built-in phono stage for connecting the moving magnet cartridge output of the turntable directly to the receiver.
        • Analog Pre-Outs: Denon AVC-X3800H has 11.4 preamplifier outputs which allows you to connect the receiver to the external power amplifier. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the receiver to power the rest. Also, Denon AVC-X3800H has 11 channel processing but has only 9 channel amplifier, so it needs external amplifier connected to the analog pre-outs in order to reach its maximum speaker configuration.
        • Analog Line Inputs: There are 6 pair of line inputs on Denon AVC-X3800H and 4 pair of line inputs on Denon AVR-X2800H for connecting sources with analog outputs.
        • Digital Inputs: 2 optical inputs and 2 coaxial inputs are available on Denon AVC-X3800H and 2 optical inputs and 1 coaxial input are available on Denon AVR-X2800H for digital audio connections.
        • Headphone Output: There is a 6.3 mm (1/4") headphone output jack on the front panel of each receiver.

        Video

        • HDMI:
        • Denon AVC-X3800H
          Inputs:           6   Outputs: 3 (2 x 8K for MAIN, 1 x 4K for ZONE2)
          8K Inputs: 6.
        • Denon AVR-X2800H
          Inputs:           6   Outputs: 2 x 8K (simultaneous)
          8K Inputs: 3.

        Front A/V Inputs

        • Denon AVC-X3800H: USB
        • Denon AVR-X2800H: USB

        Denon AVC-X3800H

        Image cannot be found Image cannot be found

        Denon AVR-X2800H

        Image cannot be found Image cannot be found
        TERMINALS Denon AVC-X3800H Denon AVR-X2800H
        HDMI Inputs66
        HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)2 x 8K (simultaneous)
        8K Inputs63
        USB Input1 Front for USB memory1 Front for USB memory
        USB DC Out Port
        Optical Inputs22
        Optical Outputs
        Coaxial Inputs21
        RCA Line Inputs64
        RCA Line Outputs
        XLR Line Inputs
        Phono Input
        Multi-Channel Input
        RCA Pre-Outs11.40.2
        XLR Pre-outs
        Composite Video Inputs
        Composite Video Outputs
        S-Video Inputs
        S-Video Outputs
        Component Video Inputs
        Component Video Outputs

        Check the Price

        Denon AVR-X2800H
        Image cannot be found
        Image cannot be found
        Image cannot be found

        11. Evaluations

        We evaluated Denon AVC-X3800H and Denon AVR-X2800H and gave them scores of 91 and 89 out of 100 recpectively. We also gave separate scores for 7 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


        Denon AVC-X3800H

        Denon AVR-X2800H

        OVERALL
        91
        OVERALL
        89

        Amplifier

        EXCELLENT
        89
        •   9.4 Channels
        •   Power Output - 105 W
        EXCELLENT
        87
        •   7.2 Channels
        •   Power Output - 95 W

        Audio Features

        EXCELLENT
        93
        •   9.4 Channels
        •   No Front Wide Channel Support
        •   11.4 Channel Processing
        •   Dolby Atmos
        •   Dolby Atmos Height Virtualization
        •   DTS:X
        •   IMAX Enhanced
        •   Auro 3D with Auro-Matic Upmixer
        •   DSD via HDMI
        EXCELLENT
        86
        •   7.2 Channels
        •   No Front Wide Channel Support
        •   7.1 Channel Processing
        •   Dolby Atmos
        •   Dolby Atmos Height Virtualization
        •   DTS:X
        •   No IMAX Enhanced
        •   No Auro 3D with Auro-Matic Upmixer
        •   No DSD via HDMI

        Video Features

        EXCELLENT
        100
        •   HDR10
        •   HDR10+
        •   Dolby Vision
        •   HDMI 2.1
        •   Auto Low Latency Mode Pass-through
        •   VRR
        •   QFT
        •   8K Passthrough
        •   8K Upscaling
        EXCELLENT
        100
        •   HDR10
        •   HDR10+
        •   Dolby Vision
        •   HDMI 2.1
        •   Auto Low Latency Mode Pass-through
        •   VRR
        •   QFT
        •   8K Passthrough
        •   8K Upscaling

        Connectivity

        EXCELLENT
        90
        •   eARC
        •   New HDCP Version
        •   Wi-Fi
        •   Bluetooth
        •   Works with Amazon Alexa
        •   Google Assistant
        •   HEOS
        •   6 HDMI Inputs
        •   4 HDMI Outputs
        •   6 8K Inputs
        •   USB Input
        •   Many RCA Line Inputs
        •   Phono Input
        •   RCA Pre-Outs
        •   No Composite Video Inputs
        •   Ethernet
        •   Bluetooth 4․2
        EXCELLENT
        86
        •   eARC
        •   New HDCP Version
        •   Wi-Fi
        •   Bluetooth
        •   Works with Amazon Alexa
        •   Google Assistant
        •   HEOS
        •   6 HDMI Inputs
        •   2 HDMI Outputs
        •   3 8K Inputs
        •   USB Input
        •   RCA Line Inputs
        •   Phono Input
        •   No RCA Pre-Outs
        •   No Composite Video Inputs
        •   Ethernet
        •   Bluetooth 4․2

        Zones

        GOOD
        84
        •   2 Zones
        GOOD
        81
        •   2 Zones

        Radio

        GOOD
        82
        •   No Analog Tuner
        •   No Pandora
        •   Spotify
        •   Tidal
        EXCELLENT
        98
        •   Analog Tuner
        •   Pandora
        •   Spotify
        •   Tidal

        12. Specifications

        GENERAL Denon AVC-X3800H Denon AVR-X2800H
        BrandDenonDenon
        ModelAVC-X3800HAVR-X2800H
        TypeA/V AmplifierA/V Receiver
        CountryUKUSA
        Release Year20222022
        PredecessorDenon AVC-X3700H Denon AVR-X2700H
        AMPLIFIER Denon AVC-X3800H Denon AVR-X2800H
        Channels9.47.2
        Power Output105 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)95 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Front Wide Channel Support
        Discrete Amplification
        THX™ Certification
        Continuous 6 Ω Rated
        Certified 4 Ω Performance
        Mono Block Power Amplifier Construction
        Bi-amp Capability assignable assignable
        AUDIO FEATURES Denon AVC-X3800H Denon AVR-X2800H
        DACAKMAKM
        DAC Specs384 kHz/32 Bit384 kHz/32 Bit
        Maximum Channel Processing11.47.1
        D.D.S.C. HD Digital
        Alpha Processing
        Air Studios Monitor Certification
        Dolby Atmos up to 7.1.4 up to 5.1.2
        Dolby Atmos Height Virtualization
        Dolby Atmos Music
        Dolby TrueHD
        Dolby Digital Plus
        Dolby Surround Upmixer
        Dolby Pro Logic
        Dolby Digital EX
        Surround EX
        DTS:X up to 7.1.4 up to 5.1.2
        DTS Neural:X
        DTS Virtual:X
        DTS Neo
        DTS-HD Master Audio
        DTS-HD High Resolution Audio
        DTS 96/24
        DTS Express
        DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
        IMAX Enhanced
        Auro 3D with Auro-Matic Upmixer Built-In
        PCM 2-ch/Multi-ch Input 2-ch/Multi-ch Input
        Network Audio FormatsMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSDMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD
        Music Playback via USBMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSDMP3, WMA, MPEG-4 AAC, Apple Lossless, WAV, FLAC, DSD
        High Resolution Music Playback via USB and/or Network up to 192 kHz up to 192 kHz
        High Resolution Audio Formats via USBApple Lossless, WAV, FLAC, DSDApple Lossless, WAV, FLAC, DSD
        Gapless Playback
        DSD via HDMI 2-ch/Multi-ch Input
        DSD via USB 2-ch Input 2-ch Input
        DSD to PCM Converter
        USB DAC
        Jitter Reduction
        DTS Dialogue Control
        Dialog Enhancement
        Dialog Level Adjustment
        Dialog normalization
        Dialogue Lift
        Compressed Music Enhancer
        High-resolution Music Enhancer
        Audyssey Dynamic EQ
        Audyssey Dynamic Volume
        Audyssey LFC
        Audyssey Sub EQ HT
        Audyssey DSX
        Direct Mode
        Pure Direct Mode
        Independent Subwoofer Outputs
        CALIBRATION Denon AVC-X3800H Denon AVR-X2800H
        Auto Speaker Calibration System with Mic. Audyssey MultEQ XT32 and Dirac Live (upgrade) Audyssey MultEQ XT
        Audyssey App Support
        Optimized Bass Redirection
        Bass Sync
        VIDEO FEATURES Denon AVC-X3800H Denon AVR-X2800H
        HDR10
        HDR10+
        Dynamic HDR
        BT.2020 color space
        Dolby Vision
        HLG (Hybrid Log Gamma)
        HDMI Version2.12.1
        HDBaseT Compatible
        Enhanced Audio Return Channel (eARC)
        HDCP Version2.32.3
        QMS (Quick Media Switching)
        ALLM (Auto Low Latency Mode)
        VRR (Variable Refresh Rate)
        QFT (Quick Frame transport)
        3-D Ready
        Video Signal Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4up to 8K 50/60Hz and 4K 100/120Hz 4:4:4
        Video Signal Upscaling up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 up to 8K 50/60Hz and 4K 100/120Hz 4:4:4
        isf Certified Calibration Control
        CONNECTIVITY Denon AVC-X3800H Denon AVR-X2800H
        Wi-Fi
        Bluetooth SBC SBC
        Bluetooth Headphone Transmission
        Works with Amazon Alexa
        Google Assistant
        Chromecast Built-In
        Apple Siri
        Works with SonoS
        HEOS
        DTS Play-Fi
        MHL Input
        DLNA 1.5
        AirPlay AirPlay 2 AirPlay 2
        Apple Product Connection iPod, iPhone and iPad iPod, iPhone and iPad
        Remote App
        InstaPrevue Input Source Prevue
        TERMINALS Denon AVC-X3800H Denon AVR-X2800H
        HDMI Inputs66
        HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)2 x 8K (simultaneous)
        8K Inputs63
        USB Input1 Front for USB memory1 Front for USB memory
        USB DC Out Port
        Optical Inputs22
        Optical Outputs
        Coaxial Inputs21
        RCA Line Inputs64
        RCA Line Outputs
        XLR Line Inputs
        Phono Input
        Multi-Channel Input
        RCA Pre-Outs11.40.2
        XLR Pre-outs
        Composite Video Inputs
        Composite Video Outputs
        S-Video Inputs
        S-Video Outputs
        Component Video Inputs
        Component Video Outputs
        Ethernet
        Ethernet Switch
        PC In
        Front A/V InputsUSBUSB
        Speaker A/B assignable assignable
        Headphone Out6.3 mm (1/4")6.3 mm (1/4")
        Detachable Power Cord
        ZONES Denon AVC-X3800H Denon AVR-X2800H
        Number of Zones22
        Powered Zones 2 2
        Zone 2 OutsHDMI, Pre OutPre Out
        RS-232C Interface
        +12V Trigger Output1
        Remote (IR) Input/Output1 / 11 / 1
        MISCELLANEOUS Denon AVC-X3800H Denon AVR-X2800H
        On-Screen Display Advanced Graphic User Interface Advanced Graphic User Interface
        GUI Languages93
        Web Control
        IP Control
        Control4 SDDP
        PreAmp Mode
        Display 1 line 1 line
        Remote ControllerRC-1253RC-1253
        Pre-programmed / Learnable / LCD Display / / / /
        Denon Link HD
        Setup Assistant
        Quick Select plus / Quick Select / /
        RADIO Denon AVC-X3800H Denon AVR-X2800H
        Analog Tuner FM/AM
        Digital Radio
        Internet Radio TuneIn TuneIn
        Pandora
        Spotify
        Tidal
        Deezer
        Napster
        SiriusXM
        CONSTRUCTION Denon AVC-X3800H Denon AVR-X2800H
        Front Panelnot Metalnot Metal
        Speaker Terminals117
        Large Speaker Terminals117
        Color-Coded Speaker Terminals
        Transparent High-Grade Speaker Terminals
        High Grade Audio Components
        Gold plated RCA terminals
        POWER Denon AVC-X3800H Denon AVR-X2800H
        Power SupplyAC 230 V, 50/60 HzAC 120 V, 60 Hz
        Power Consumption660 W500 W
        No Sound PowerECO On/Off: 60 W/100 WECO On/Off: 35 W/75 W
        Standby Power0.1 W0.1 W
        ECO Mode / Hybrid Standby Function
        Auto Power off
        PHYSICAL Denon AVC-X3800H Denon AVR-X2800H
        Dimensions (W x H x D)434 mm x 167 mm x 389 mm (with antenna: 434 mm x 236 mm x 389 mm)
        17 1/8" x 6 5/8" x 15 3/8" (with antenna: 17 1/8" x 9 3/8" x 15 3/8")        		434 mm x 167 mm x 341 mm (with antenna: 434 mm x 237 mm x 341 mm)
        17 1/8" x 6 5/8" x 13 1/2" (with antenna: 17 1/8" x 9 3/8" x 13 1/2")
        Dimensions of Package (W x H x D)519 mm x 242 mm x 478 mm
        21.2" x 10.1" x 19.0"        		520 mm x 243 mm x 429 mm
        20.5" x 9.6" x 16.9"
        Weight12.5 kg (27.6 lbs)9.5 kg (21.0 lbs)
        Weight of Package15.1 kg (33.3 lbs)11.5 kg (25.4 lbs)
        SPECIFICATIONS Denon AVC-X3800H Denon AVR-X2800H
        Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)105 W (0.08% THD)95 W (0.08% THD)
        Power Output (6 Ω, 1 kHz, 2 channel driven, FTC)135 W (0.7% THD)125 W (0.7% THD)
        Maximum Effective Power Output (6 Ω, 1 kHz, 1 channel driven, JEITA or IEC)215 W (10% THD)185 W (10% THD)
        Rated Power Output (6 Ω, 1 kHz, 1 channel driven, IEC)180 W (1% THD)150 W (1% THD)
        THD (Digital)0.008% (1 kHz, at 0 dB)0.008% (1 kHz, at 0 dB)
        Analog Distortion0.008% (20 Hz-20 kHz, Direct mode)0.008% (20 Hz-20 kHz, Direct mode)
        Phono Distortion0.03% (1 kHz, 3 V)0.03% (1 kHz, 3 V)
        Input Sensitivity and Impedance (Line)200 mV/47 kΩ200 mV/47 kΩ
        Rated Lineout Level and Impedance1.2 V1.2 V
        Rated Output digital2 V (at 0 dB playback)2 V (at 0 dB playback)
        S/N Ratio (Line, IHF-A)100 dB100 dB
        S/N Ratio (Phono MM, IHF-A)74 dB74 dB
        S/N Ratio (digital)102 dB102 dB
        Dynamic Range (digital)100 dB100 dB
        Phono RIAA Deviation±1 dB (20 Hz to 20 kHz)±1 dB (20 Hz to 20 kHz)
        Frequency Response (Analog In)+1/-3 dB (10 Hz to 100 kHz, Direct mode)+1/-3 dB (10 Hz to 100 kHz, Direct mode)
        DSD Sampling Rates via HDMI2.8 MHz2.8 MHz
        DSD Sampling Rates via USB5.6 MHz, 2.8 MHz5.6 MHz, 2.8 MHz
        Ethernet Standard100BASE-TX100BASE-TX
        Wi-Fi StandardIEEE 802.11 a/b/g/n/acIEEE 802.11 a/b/g/n/ac
        Wi-Fi Terminal Frequency5 GHz, 2.4 GHz5 GHz, 2.4 GHz
        Bluetooth Version4․24․2
        Bluetooth Frequency2.4 GHz2.4 GHz
        USB TerminalUSB2.0 5V, 1 AUSB2.0 5V, 1 A
        FM Frequency87.5 MHz - 107.9 MHz
        FM 50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)Mono: 2.8 µV (20.2 dBf)
        FM Effective Sensitivity1.2 µV (12.8 dBf)
        FM S/N RatioMono/Stereo: 70 dB/67 dB
        FM Harmonic Distortion (IHF, 1 kHz)Mono/Stereo: 0.7%/1.0%
        AM Frequency520 kHz - 1710 kHz
        AM Effective Sensitivity18 µV
        Warranty3 Years3 Years

        * - 480i/576i and 480p/576p only
        ** - 480i/576i only
        *** - no 1080p/24 upconversion
        **** - 1080p signal is not converted

        Amazon Affiliate Disclosure
        ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
