Arcam AVR21 vs Arcam AVR20

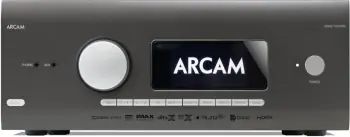

      Arcam AVR21

      Arcam AVR20
      92
      Image cannot be found
      91
      Image cannot be found
      All
      All
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Image cannot be found



      Highlights

      • 7.2 Channels
      • 15.2 Channel Processing
      • 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • HDMI 2.1
      • Dolby Atmos, DTS:X, Auro 3D
      • HDR10, HDR10+, Dolby Vision
      • 8K Passthrough
      • Wi-Fi, Bluetooth, Ethernet

      Highlights

      • 7.2 Channels
      • 15.2 Channel Processing
      • 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      • Dolby Atmos, DTS:X, Auro 3D
      • HDR10, Dolby Vision
      • 4K/60Hz Passthrough
      • Wi-Fi, Bluetooth, Ethernet

      Disclosure: We earn money from the affiliate links to products associated with content in this article.

      Table of Contents
      1. Overview
      2. Pros and Cons
      3. Advantage of Arcam AVR21
      4. Common Strengths and Weaknesses
      5. Amplifier
      6. Speaker Configurations
      7. Immersive Audio Formats
      8. HDMI
      9. Inputs and Outputs
      10. Evaluations
      11. Specifications

      1. Overview

      Here we are comparing Arcam AVR21 to Arcam AVR20 to reveal their common strengths and weaknesses as well as the differences between them which will help you in making a correct decision before the purchase. Both receivers have 7 channel and equally powerful amplifiers.


      Arcam AVR21 Arcam AVR20

      Arcam AVR21 was introduced in 2022. It is equipped with 7 channel amplifier with 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 15.2 maximum channel processing. It supports Dolby Atmos, DTS:X and Auro-3D, passes 8K/60Hz and 4K/120Hz video signal.

      Arcam AVR20 was introduced in 2019. It is equipped with 7 channel amplifier with 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) power per channel and is capable of 15.2 maximum channel processing. It supports Dolby Atmos, DTS:X and Auro-3D, passes 4K/60Hz video signal.

      We evaluated Arcam AVR21 and Arcam AVR20 and gave them scores of 92 and 91 out of 100 recpectively. Our ranking system is based on the amplifier specifications, audio and video features, connectivity, multizone capabilities, radio and many other details.

      Arcam AVR21

      Arcam AVR20

      Amplifier
      91
      Amplifier
      91
      Audio Features
      94
      Audio Features
      94
      Video Features
      99
      Video Features
      95
      Connectivity
      90
      Connectivity
      88
      Zones
      85
      Zones
      85
      Radio
      86
      Radio
      86
      OVERALL
      92
      OVERALL
      91

      For more details about the ranking please go to    Evaluations section.

      2. Pros and Cons

      In this section we present pros and cons of Arcam AVR21 and Arcam AVR20.

      PROS

      Arcam AVR21

      Arcam AVR20

      •   High Power Output - 110 W
      •   Front Wide Channel Support
      •   15.2 Channel Processing
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   MQA Decoding
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   HDR10
      •   HDR10+
      •   Dolby Vision
      •   HDMI 2.1
      •   eARC
      •   New HDCP Version
      •   Auto Low Latency Mode Pass-through
      •   VRR
      •   8K Passthrough
      •   Wi-Fi
      •   Bluetooth
      •   Google Assistant
      •   Chromecast Built-In
      •   7 HDMI Inputs
      •   4 HDMI Outputs
      •   7 8K Inputs
      •   USB Input
      •   Many RCA Line Inputs
      •   RCA Pre-Outs
      •   Ethernet
      •   Analog Tuner
      •   Digital Radio
      •   Pandora
      •   Spotify
      •   Tidal
      •   Toroidal Transformer
      •   Bluetooth 5․0
      •   High Power Output - 110 W
      •   Front Wide Channel Support
      •   15.2 Channel Processing
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   MQA Decoding
      •   DSD via HDMI
      •   Auto Speaker Calibration System with Mic.
      •   HDR10
      •   Dolby Vision
      •   eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Google Assistant
      •   Chromecast Built-In
      •   7 HDMI Inputs
      •   4 HDMI Outputs
      •   USB Input
      •   Many RCA Line Inputs
      •   RCA Pre-Outs
      •   Ethernet
      •   Analog Tuner
      •   Digital Radio
      •   Pandora
      •   Spotify
      •   Tidal
      •   Toroidal Transformer
      •   Bluetooth 5․0

      CONS

      Arcam AVR21

      Arcam AVR20

      •   Does not Work with Amazon Alexa
      •   No Phono Input
      •   No Composite Video Inputs
      •   No HDR10+
      •   No 8K Passthrough
      •   Does not Work with Amazon Alexa
      •   0 8K Input
      •   No Phono Input
      •   No Composite Video Inputs


      And here are some specifications which fall into average criteria and are neither in PROs nor in CONs category:

      AVERAGE

      Arcam AVR21

      Arcam AVR20

      •   7.2 Channels
      •   2 Zones
      •   7.2 Channels
      •   HDMI 2.0b
      •   2 Zones

      3. Advantage of Arcam AVR21

      This section shows those features and specifications which are the reason to choose Arcam AVR21 over Arcam AVR20.

      Check the Price

      Arcam AVR21
      Image cannot be found
      Image cannot be found
      Image cannot be found
      Arcam AVR21 vs Arcam AVR20
      HDR10+ vs
      Newer HDMI Version 2.1 vs 2.0b
      Newer HDCP Version 2.3 vs 2.2
      Auto Low Latency Mode Pass-through vs
      VRR vs
      Video Signal Passthrough up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 vs up to 4K 50/60Hz 4:4:4
      More 8K Inputs 7 vs
      Check out other receivers which are frequently compared to Arcam AVR21.
      Arcam AVR31
      Image cannot be found

      7.2 channel

      120 W

      Anthem MRX 740 8K
      Image cannot be found

      7.2 channel

      140 W

      Arcam AVR11
      Image cannot be found

      7.2 channel

      80 W

      Marantz Cinema 40
      Image cannot be found

      9.4 channel

      125 W

      Yamaha RX-A6A
      Image cannot be found

      9.2 channel

      150 W

      Marantz Cinema 30
      Image cannot be found

      11.4 channel

      140 W

      Anthem MRX 1140 8K
      Image cannot be found

      11.2 channel

      140 W

      Yamaha RX-A8A
      Image cannot be found

      11.2 channel

      150 W

      Yamaha RX-A4A
      Image cannot be found

      7.2 channel

      110 W

      Onkyo TX-RZ70
      Image cannot be found

      11.2 channel

      140 W

      Pioneer VSX-LX805
      Image cannot be found

      11.4 channel

      150 W

      Denon AVR-X6700H
      Image cannot be found

      11.2 channel

      140 W

      4. Common Strengths and Weaknesses

      We already listed pros and cons of each model. However, you may also find useful to look at their common strengths and weaknesses shown side-by-side.

      STRENGTHS Arcam AVR21 Arcam AVR20
        High Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
        Front Wide Channel Support
        Channel Processing15.215.2
        Dolby Atmos up to 9.1.6 with external amp up to 9.1.6 with external amp
        Dolby Atmos Height Virtualization
        DTS:X Pro up to 9.1.6 with external amp Pro up to 9.1.6 with external amp
        IMAX Enhanced
        Auro 3D with Auro-Matic Upmixer 13.1-ch (Built-In) 13.1-ch (Built-In)
        MQA Decoding
        DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
        Auto Speaker Calibration System with Mic. Dirac Live™ Dirac Live™
        HDR10
        Dolby Vision
        eARC
        New HDCP Version2.32.2
        Wi-Fi
        Bluetooth aptX HD aptX HD
        Google Assistant
        Chromecast Built-In
        Many HDMI Inputs77
        Many HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)3 (2 for MAIN, 1 for ZONE2)
        USB Input for factory service for factory service
        Many RCA Line Inputs7 (1 front)7 (1 front)
        RCA Pre-Outs15.215.2
        Ethernet
        Analog Tuner FM with RDS FM with RDS
        Digital Radio DAB/DAB+ DAB/DAB+
        Pandora
        Spotify
        Tidal
        Toroidal Transformer
        New Bluetooth Version5․05․0
      WEAKNESSES Arcam AVR21 Arcam AVR20
        Does not Work with Amazon Alexa
        No Phono Input
        No Composite Video Inputs

      5. Amplifier

      Arcam AVR21 Arcam AVR20

      7 channel Class A/B Amplifier: Arcam AVR21 features 7 channel power amplifier with Class A/B design. It is rated at 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.

      7 channel Class A/B Amplifier: Arcam AVR20 features 7 channel power amplifier with Class A/B design. It is rated at 110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven) and is able to drive 4 ohm speakers.
      • Toroidal Transformer: Arcam AVR21 and Arcam AVR20 have a toroidal transformer which in general costs several times more than a regular C-core transformer and radiates less electromagnetic noise outside its donut shaped core.


      AMPLIFIER Arcam AVR21 Arcam AVR20
      Channels7.27.2
      Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Amplifier DesignClass A/BClass A/B
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability

      Check the Price

      Arcam AVR21
      Image cannot be found
      Image cannot be found
      Image cannot be found

      6. Speaker Configurations

      Arcam AVR21's and Arcam AVR20's amplifiers can be assigned for different speaker configurations.

      • Dolby Atmos Configurations: The following speaker configurations are supported for Dolby Atmos:
      • Arcam AVR21: 5.2.2 with internal amplifier and 5.2.4, 7.2.2 with addition of external 2 channel amplifier and 5.2.6, 7.2.4, 9.2.2 with addition of external 4 channel amplifier and 7.2.6, 9.2.4 with addition of external 6 channel amplifier and 9.2.6 with addition of external 8 channel amplifier.
      • Arcam AVR20: 5.2.2 with internal amplifier and 5.2.4, 7.2.2 with addition of external 2 channel amplifier and 5.2.6, 7.2.4, 9.2.2 with addition of external 4 channel amplifier and 7.2.6, 9.2.4 with addition of external 6 channel amplifier and 9.2.6 with addition of external 8 channel amplifier.
      • DTS:X Configurations: The following speaker configurations are supported for DTS:X:
      • Arcam AVR21: This model supports DTS:X but not DTS:X Pro. Since DTS:X is limited with 11 channel processing some of the speaker configurations for Dolby Atmos are not supported here. The supported configurations are 5.2.2 with internal amplifier and 5.2.4, 7.2.2 with addition of external 2 channel amplifier and 5.2.6, 7.2.4, 9.2.2 with addition of external 4 channel amplifier.
      • Arcam AVR20: This model supports DTS:X but not DTS:X Pro. Since DTS:X is limited with 11 channel processing some of the speaker configurations for Dolby Atmos are not supported here. The supported configurations are 5.2.2 with internal amplifier and 5.2.4, 7.2.2 with addition of external 2 channel amplifier and 5.2.6, 7.2.4, 9.2.2 with addition of external 4 channel amplifier.
      • Configurations without height channels: There are also other speaker configurations available which do not include height channels:
      • Arcam AVR21: 5.2, 7.2 with internal amplifier and 9.2 with addition of external 2 channel amplifier.
      • Arcam AVR20: 5.2, 7.2 with internal amplifier and 9.2 with addition of external 2 channel amplifier.
      • Front Wide Channel support: With the presence of two front wide speakers you can enhance the front surround stage. The following speaker configurations are available for front wide channels:
      • Arcam AVR21: 9.2, 9.2.2, 9.2.4, 9.2.6.
      • Arcam AVR20: 9.2, 9.2.2, 9.2.4, 9.2.6.
      • 2-ch Bi-Amp: Both models are able to bi-amp up to 2 main channels simultaneously. During bi-amplification two amplifiers are used for one speaker. One amplifier powers the midrange and tweeter section of the speaker and another amplifier powers the low frequency woofers. Each amplifier is less loaded and performs better. In order to use this feature speakers must have 2 pairs of connectors.

      7. Immersive Audio Formats

      Dolby Atmos

      Arcam AVR21 and Arcam AVR20 support Dolby Atmos.

      • Dolby Surround Upmixer: Both models support Dolby Surround Upmixer. If the content is not mixed in Dolby Atmos then the Dolby surround upmixer will expand the audio to all channels including ceiling speakers. The upmixer has replaced the Dolby Pro Logic II family with improved upmixing algorithms.
      • Dolby Atmos Height Virtualization: Both models support Dolby Atmos Height Virtualization which is a digital signal processing solution that leverages Dolby's deep understanding of human audio perception to create the sensation of overhead sound from the listener-level speakers.

      DTS:X

      Arcam AVR21 and Arcam AVR20 support DTS:X.

      • DTS Neural:X: Both models feature DTS Neural:X which is an advanced upmixer that can take non DTS:X content and upmix it to the DTS:X speaker layout. It has replaced the DTS Neo family with improved flexibility.
      • DTS Virtual:X: Both models feature DTS Virtual:X which bridges the gap between DTS:X codec and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. If you have a limited speaker setup you will miss a full immersive potential of your entertainment system. DTS Virtual:X adds height and surround audio effect to your system without adding height speakers. It works with multiple configurations and delivers immersive sound experience out of 5.1 or even 2.1 speaker layouts.
      • DTS Dialog Control: Both models have DTS Dialog Control. This function adjusts the dialog levels during playback of the DTS:X stream. It allows you to separately increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances.

      Auro-3D

      Arcam AVR21 and Arcam AVR20 support Auro-3D.

      • Auro-Matic upmixer: Auro-Matic upmixer takes non Auro-3D sound and upmixes to the current speaker configuration.

      IMAX Enhanced

      Arcam AVR21 and Arcam AVR20 are IMAX Enhanced certified. To qualify for IMAX Enhanced certification, 4K HDR televisions, projectors, sound bars, a/v receivers, loudspeakers, powered subwoofers and other premium home entertainment devices must meet carefully prescribed performance requirements established by IMAX, DTS and Hollywood's leading experts.

      • What makes an IMAX Enhanced A/V receiver different from an A/V receiver with DTS:X technology? DTS:X technology is commonly found in most multi-channel A/V receivers on the market today. All IMAX Enhanced A/V receivers include DTS:X technology and deliver additional features, such as auto-sensing of IMAX Enhanced content, via IMAX Mode. IMAX Mode indicates that your A/V receiver supports fully immersive IMAX signature sound.
      AUDIO DECODING Arcam AVR21 Arcam AVR20
      Dolby Atmos up to 9.1.6 with external amp up to 9.1.6 with external amp
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      DTS:X Pro up to 9.1.6 with external amp Pro up to 9.1.6 with external amp
      DTS Neural:X
      DTS Virtual:X
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer 13.1-ch (Built-In) 13.1-ch (Built-In)
      MQA Decoding

      Check the Price

      Arcam AVR20
      Image cannot be found
      Image cannot be found
      Image cannot be found

      8. HDMI

      Arcam AVR21 comes with 7 HDMI 2.1 inputs with 8K support. It has 3 outputs - 2 x 8K for MAIN and 1 x 4K for ZONE2.

      Arcam AVR20 comes with 7 HDMI inputs. It has 3 outputs - 2 for MAIN and 1 for ZONE2.

      • 8K/60Hz and 4K/120Hz Passthrough on Arcam AVR21: All inputs pass up to 8K 50/60Hz and 4K 100/120Hz 4:4:4 video signal.
        4K/60Hz Passthrough on Arcam AVR20: All inputs pass up to 4K 50/60Hz 4:4:4 video signal.
      • BT.2020 Color Space: BT.2020 or Rec. 2020 is a color standard which delivers a wider color gamut compared to Rec. 709. It covers approximately 75% of the total visual spectrum while the Rec. 709 covers only 35% (available on both models).
      • HDCP Copy Protection: Arcam AVR21 is HDCP 2.3 and Arcam AVR20 is HDCP 2.2 compliant which is a requirement for 4K/HDR copy-protected content transmission.
      • 3D Ready: Both receivers are able to pass 3D video through HDMI.

      HDR (High Dynamic Range)

      Arcam AVR21 supports HDR10, HDR10+, Dolby Vision and Hybrid Log-Gamma.

      Arcam AVR20 supports HDR10, Dolby Vision and Hybrid Log-Gamma. High dynamic range video has greater dynamic range than standard dynamic range (SDR) video with brighter whites and deeper blacks. The result is greater contrast and more details in dark and bright areas, better color and depth.


      Enhanced Audio Return Channel (eARC)

      Arcam AVR21 and Arcam AVR20 support Audio Return Channel (ARC) which allows the compatible TV to send audio signal to the a/v receiver through the same HDMI cable which is used to send audio and video signals to the TV. So one HDMI cable is used to transfer audio signal in both directions. New Enhanced ARC will support uncompressed audio formats such as Dolby Atmos, DTS:X, Dolby TrueHD and DTS HD Master Audio whereas the previous ARC could support only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.


      Gaming Features

      Arcam AVR21 supports Auto Low Latency Mode (ALLM) and Variable Refresh Rate (VRR) for lag-free and smooth gaming.



      VIDEO FEATURES Arcam AVR21 Arcam AVR20
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDMI Version2.12.0b
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.32.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      DSC (Display Stream Compression)
      3-D Ready
      Video Signal Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4up to 4K 50/60Hz 4:4:4

      Check the Price

      Arcam AVR21
      Image cannot be found
      Image cannot be found
      Image cannot be found

      9. Inputs and Outputs

      Audio

      • Analog Pre-Outs: Arcam AVR21 and Arcam AVR20 have 15.2 preamplifier outputs which allow you to connect the receivers to the external power amplifiers. You may want to use a high quality external amplifier for certain channels, usually for front L/R and center, and use the receiver to power the rest. Also, both receivers have 15 channel processing but have only 7 channel amplifiers, so they need external amplifiers connected to the analog pre-outs in order to reach their maximum speaker configurations.
      • Analog Line Inputs and Outputs: There are 7 pair of line inputs on both receivers for connecting sources with analog outputs. There are also 1 pair of line outputs on the receivers.
      • Digital Inputs and Outputs: 2 optical inputs, 1 optical output and 4 coaxial inputs are available for digital audio connections on both receivers.
      • Headphone Output: There is a 3.5 mm (1/8") headphone output jack on the front panel of each receiver.

      Video

      • HDMI:
      • Arcam AVR21
        Inputs:         7   Outputs: 3 (2 x 8K for MAIN, 1 x 4K for ZONE2)
        8K Inputs: 7.
      • Arcam AVR20
        Inputs:         7   Outputs: 3 (2 for MAIN, 1 for ZONE2)
        8K Inputs: 0.

      Front A/V Inputs

      • Arcam AVR21: AUX (3.5 mm Audio)
      • Arcam AVR20: AUX (3.5 mm Audio)

      Arcam AVR21

      Image cannot be found Image cannot be found

      Arcam AVR20

      Image cannot be found Image cannot be found
      TERMINALS Arcam AVR21 Arcam AVR20
      HDMI Inputs77
      HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)3 (2 for MAIN, 1 for ZONE2)
      8K Inputs7
      USB Input for factory service for factory service
      USB DC Out Port
      Optical Inputs22
      Optical Outputs11
      Coaxial Inputs44
      RCA Line Inputs7 (1 front)7 (1 front)
      RCA Line Outputs11
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs15.215.2
      XLR Pre-outs
      Composite Video Inputs
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs

      Check the Price

      Arcam AVR20
      Image cannot be found
      Image cannot be found
      Image cannot be found

      10. Evaluations

      We evaluated Arcam AVR21 and Arcam AVR20 and gave them scores of 92 and 91 out of 100 recpectively. We also gave separate scores for 7 different categories according to the available features and specifications some of which are listed below. These evaluations are relative and may change each time a new receiver is added to the database.


      Arcam AVR21

      Arcam AVR20

      OVERALL
      92
      OVERALL
      91

      Amplifier

      EXCELLENT
      91
      •   7.2 Channels
      •   High Power Output - 110 W
      •   Toroidal Transformer
      EXCELLENT
      91
      •   7.2 Channels
      •   High Power Output - 110 W
      •   Toroidal Transformer

      Audio Features

      EXCELLENT
      94
      •   7.2 Channels
      •   Front Wide Channel Support
      •   15.2 Channel Processing
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   MQA Decoding
      •   DSD via HDMI
      EXCELLENT
      94
      •   7.2 Channels
      •   Front Wide Channel Support
      •   15.2 Channel Processing
      •   Dolby Atmos
      •   Dolby Atmos Height Virtualization
      •   DTS:X
      •   IMAX Enhanced
      •   Auro 3D with Auro-Matic Upmixer
      •   MQA Decoding
      •   DSD via HDMI

      Video Features

      EXCELLENT
      99
      •   HDR10
      •   HDR10+
      •   Dolby Vision
      •   HDMI 2.1
      •   Auto Low Latency Mode Pass-through
      •   VRR
      •   8K Passthrough
      EXCELLENT
      95
      •   HDR10
      •   No HDR10+
      •   Dolby Vision
      •   HDMI 2.0b
      •   No 8K Passthrough

      Connectivity

      EXCELLENT
      90
      •   eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   Google Assistant
      •   Chromecast Built-In
      •   7 HDMI Inputs
      •   4 HDMI Outputs
      •   7 8K Inputs
      •   USB Input
      •   Many RCA Line Inputs
      •   No Phono Input
      •   RCA Pre-Outs
      •   No Composite Video Inputs
      •   Ethernet
      •   Bluetooth 5․0
      EXCELLENT
      88
      •   eARC
      •   New HDCP Version
      •   Wi-Fi
      •   Bluetooth
      •   Does not Work with Amazon Alexa
      •   Google Assistant
      •   Chromecast Built-In
      •   7 HDMI Inputs
      •   4 HDMI Outputs
      •   0 8K Input
      •   USB Input
      •   Many RCA Line Inputs
      •   No Phono Input
      •   RCA Pre-Outs
      •   No Composite Video Inputs
      •   Ethernet
      •   Bluetooth 5․0

      Zones

      EXCELLENT
      85
      •   2 Zones
      EXCELLENT
      85
      •   2 Zones

      Radio

      EXCELLENT
      86
      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   Tidal
      EXCELLENT
      86
      •   Analog Tuner
      •   Pandora
      •   Spotify
      •   Tidal

      11. Specifications

      GENERAL Arcam AVR21 Arcam AVR20
      BrandArcamArcam
      SeriesHDAHDA
      ModelAVR21AVR20
      TypeA/V ReceiverA/V Receiver
      CountryAllAll
      Release Year20222019
      PredecessorArcam AVR20
      SuccessorArcam AVR21
      AMPLIFIER Arcam AVR21 Arcam AVR20
      Channels7.27.2
      Power Output110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)110 W (8 Ω, 20 Hz - 20 kHz, 2 channel driven)
      Front Wide Channel Support
      Amplifier DesignClass A/BClass A/B
      THX™ Certification
      Continuous 6 Ω Rated
      Certified 4 Ω Performance
      Bi-amp Capability
      AUDIO FEATURES Arcam AVR21 Arcam AVR20
      DACDual ESS 9026PROESS 9026PRO
      DAC Specs192 kHz/24 Bit192 kHz/24 Bit
      Maximum Channel Processing15.215.2
      Dolby Atmos up to 9.1.6 with external amp up to 9.1.6 with external amp
      Dolby Atmos Height Virtualization
      Dolby Atmos Music
      Dolby TrueHD
      Dolby Digital Plus
      Dolby Surround Upmixer
      Dolby Pro Logic
      Dolby Digital EX
      DTS:X Pro up to 9.1.6 with external amp Pro up to 9.1.6 with external amp
      DTS Neural:X
      DTS Virtual:X
      DTS Neo
      DTS-HD Master Audio
      DTS-HD High Resolution Audio
      DTS 96/24
      DTS-ES Discrete 6.1, Matrix 6.1 Discrete 6.1, Matrix 6.1
      IMAX Enhanced
      Auro 3D with Auro-Matic Upmixer 13.1-ch (Built-In) 13.1-ch (Built-In)
      MQA Decoding
      PCM 2-ch/Multi-ch Input 2-ch/Multi-ch Input
      Network Audio FormatsMP3, WMA, AAC, WAV, FLAC, AIFF, ALAC, MQAMP3, WMA, AAC, WAV, FLAC, AIFF, ALAC, MQA
      Music Playback via USB
      High Resolution Music Playback via USB and/or Network up to 192 kHz up to 192 kHz
      Gapless Playback
      DSD via HDMI 2-ch/Multi-ch Input 2-ch/Multi-ch Input
      DSD via USB
      DSD to PCM Converter
      USB DAC
      DTS Dialogue Control
      Dialog normalization
      Dialogue Lift
      Audyssey Dynamic EQ
      Audyssey Dynamic Volume
      Audyssey LFC
      Audyssey Sub EQ HT
      Audyssey DSX
      Direct Mode Stereo Direct, CD Direct Stereo Direct, CD Direct
      Independent Subwoofer Outputs
      CALIBRATION Arcam AVR21 Arcam AVR20
      Auto Speaker Calibration System with Mic. Dirac Live™ Dirac Live™
      VIDEO FEATURES Arcam AVR21 Arcam AVR20
      HDR10
      HDR10+
      Dynamic HDR
      BT.2020 color space
      Dolby Vision
      HLG (Hybrid Log Gamma)
      HDMI Version2.12.0b
      Enhanced Audio Return Channel (eARC)
      HDCP Version2.32.2
      QMS (Quick Media Switching)
      ALLM (Auto Low Latency Mode)
      VRR (Variable Refresh Rate)
      QFT (Quick Frame transport)
      DSC (Display Stream Compression)
      3-D Ready
      Video Signal Passthroughup to 8K 50/60Hz and 4K 100/120Hz 4:4:4up to 4K 50/60Hz 4:4:4
      CONNECTIVITY Arcam AVR21 Arcam AVR20
      Wi-Fi
      Bluetooth aptX HD aptX HD
      Works with Amazon Alexa
      Google Assistant
      Chromecast Built-In
      Apple Siri
      Works with SonoS
      DTS Play-Fi
      AirPlay AirPlay 2 AirPlay 2
      Apple Product Connection iPod, iPhone and iPad iPod, iPhone and iPad
      Remote App Arcam control app Arcam control app
      TERMINALS Arcam AVR21 Arcam AVR20
      HDMI Inputs77
      HDMI Outputs3 (2 x 8K for MAIN, 1 x 4K for ZONE2)3 (2 for MAIN, 1 for ZONE2)
      8K Inputs7
      USB Input for factory service for factory service
      USB DC Out Port
      Optical Inputs22
      Optical Outputs11
      Coaxial Inputs44
      RCA Line Inputs7 (1 front)7 (1 front)
      RCA Line Outputs11
      XLR Line Inputs
      Phono Input
      Multi-Channel Input
      RCA Pre-Outs15.215.2
      XLR Pre-outs
      Composite Video Inputs
      Composite Video Outputs
      S-Video Inputs
      S-Video Outputs
      Component Video Inputs
      Component Video Outputs
      Ethernet
      Ethernet Switch
      PC In
      Front A/V InputsAUX (3.5 mm Audio)AUX (3.5 mm Audio)
      Headphone Out3.5 mm (1/8")3.5 mm (1/8")
      Detachable Power Cord
      ZONES Arcam AVR21 Arcam AVR20
      Number of Zones22
      Powered Zones 2 2
      Zone 2 OutsHDMI, Pre OutHDMI, Pre Out
      RS-232C Interface
      +12V Trigger Output22
      Remote (IR) Input/Output2 / 02 / 0
      MISCELLANEOUS Arcam AVR21 Arcam AVR20
      IP Control
      PreAmp Mode
      DisplayLarge front-panel LCD displayLarge front-panel LCD display
      RADIO Arcam AVR21 Arcam AVR20
      Analog Tuner FM with RDS FM with RDS
      Presets5050
      Digital Radio DAB/DAB+ DAB/DAB+
      Internet Radio TuneIn TuneIn
      Pandora
      Spotify
      Tidal
      Deezer
      Napster
      SiriusXM
      CONSTRUCTION Arcam AVR21 Arcam AVR20
      Speaker Terminals77
      Large Speaker Terminals77
      POWER Arcam AVR21 Arcam AVR20
      Power SupplyAC 110-120 V or 220-240 V, 50/60 Hz via switchAC 110-120 V or 220-240 V, 50/60 Hz via switch
      Toroidal Transformer
      Power Consumption1500 W1500 W
      Standby Power0.5 W0.5 W
      PHYSICAL Arcam AVR21 Arcam AVR20
      Dimensions (W x H x D)433 mm x 171 mm x 425 mm
      17.06" x 6.69" x 18.56"      		433 mm x 171 mm x 425 mm
      17.06" x 6.69" x 18.56"
      Weight16.6 kg (36.4 lbs)16.6 kg (36.4 lbs)
      Weight of Package19.9 kg19.9 kg
      SPECIFICATIONS Arcam AVR21 Arcam AVR20
      Power Output (8 Ω, 20 Hz - 20 kHz, 2 channel driven, FTC)110 W (0.02% THD)110 W (0.02% THD)
      Power Output (8 Ω, 1 kHz, 2 channel Driven, FTC)125 W (0.2% THD)125 W (0.2% THD)
      Power Output (4 Ω, 20 Hz - 20 kHz, 2 channel Driven)175 W (0.2% THD)175 W (0.2% THD)
      Power Output (4 Ω, 1 kHz, 2 channel Driven)190 W (0.2% THD)190 W (0.2% THD)
      Multi Channel Simultaneous Drive90 W (7 channels driven, 1kHz, 8 Ω, 0.2% THD)
      110 W (7 channels driven, 1kHz, 4 Ω, 0.2% THD)      		90 W (7 channels driven, 1kHz, 8 Ω, 0.2% THD)
      110 W (7 channels driven, 1kHz, 4 Ω, 0.2% THD)
      Input Sensitivity and Impedance (Line)1V, 2V, 4V (user adjustable)/47 kΩ1V, 2V, 4V (user adjustable)/47 kΩ
      Maximum Input Sensitivity (Line)4.5 Vrms4.5 Vrms
      Rated Preout Level and Impedance1 Vrms/560 Ω1 Vrms/560 Ω
      Maximum Preout Level and Impedance5 Vrms/560 Ω5 Vrms/560 Ω
      Rated Headphone Jack Output Level and Impedance5 Vrms/100 Ω5 Vrms/100 Ω
      S/N Ratio (Line, IHF-A)93 dB (normal)
      110 dB (stereo direct)      		93 dB (normal)
      110 dB (stereo direct)
      Frequency Response (Analog In)±0.2 dB (20 Hz to 20 kHz)±0.2 dB (20 Hz to 20 kHz)
      Residual noise (IHF-A Network)0.15 mV0.15 mV
      DSD Sampling Rates via HDMI2.8 MHz2.8 MHz
      Wi-Fi StandardIEEE 802.11 acIEEE 802.11 ac
      Wi-Fi Terminal Frequency5 GHz, 2.4 GHz5 GHz, 2.4 GHz
      Bluetooth Version5․05․0
      Warranty5 Years5 Years

      * - 480i/576i and 480p/576p only
      ** - 480i/576i only
      *** - no 1080p/24 upconversion
      **** - 1080p signal is not converted

      Amazon Affiliate Disclosure
      ZKelectronics is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for website owners to earn advertising fees by advertising and linking to Amazon (.com, .co.uk, .ca, etc) and any other websites that may be affiliated with Amazon Service LLC Associates Program.
