Panasonic Lumix DC-GH5S

Panasonic Lumix DC-GH5S was announced in 2018 and is a Micro Four Thirds (17.3 x 13 mm) Mirrorless camera with 10.28 Megapixel CMOS sensor. Its native ISO ranges from 160 to 51,200 and expands to 80 - 204,800 in boosted mode. The camera has a Fully Articulated 3.2" screen with 1,620k dot resolution and built-in Electronic viewfinder with 3,680k dot resolution.

Panasonic Lumix DC-GH5S can capture video up to 4096 x 2160 resolution with no recording time limit.

Here is the Panasonic -GHx series lineup, where you can view and compare the main specifications of the cameras within the same series.

Panasonic -GHx series lineup

	Model	Date	Sensor	Native ISO	Screen	Price
	Panasonic GH6 Compare	February 2022	25.2 MP Micro Four Thirds	100 - 25,600	Articulated 3.0" 1,840k dot Touchscreen	amazon B&H
	Panasonic GH5 II Compare	July 2021	20.33 MP Micro Four Thirds	200 - 25,600	Articulated 3.0" 1,840k dot Touchscreen	amazon B&H
	Panasonic GH5S	January 2018	10.28 MP Micro Four Thirds	160 - 51,200	Articulated 3.2" 1,620k dot Touchscreen	amazon B&H
	Panasonic GH5 Compare	January 2017	20.3 MP Micro Four Thirds	200 - 25,600	Articulated 3.2" 1,620k dot Touchscreen	amazon B&H
	Panasonic GH4 Compare	February 2014	16.05 MP Micro Four Thirds	200 - 25,600	Articulated 3.0" 1,036k dot Touchscreen	amazon B&H
	Panasonic GH3 Compare	September 2012	16.05 MP Micro Four Thirds	200 - 12,800	Articulated 3.0" 614k dot Touchscreen	amazon B&H
	Panasonic GH2 Compare	March 2011	16 MP Micro Four Thirds	160 - 12,800	Articulated 3.0" 460k dot Touchscreen	amazon B&H
	Panasonic GH1 Compare	July 2009	12 MP Micro Four Thirds	100 - 1,600	Articulated 3.0" 460k dot	amazon B&H

You can view their side-by-side comparison here: Panasonic Lumix DC-GH6 vs Lumix DC-GH5 II vs Lumix DC-GH5S vs Lumix DC-GH5 vs Lumix DMC-GH4 vs Lumix DMC-GH3.

In this section we present pros and cons of Panasonic Lumix DC-GH5S.

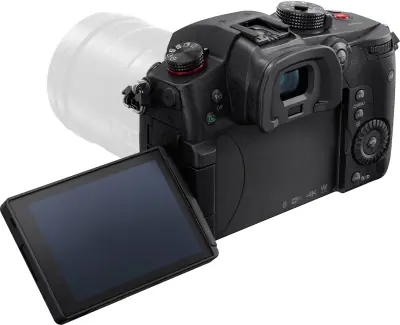

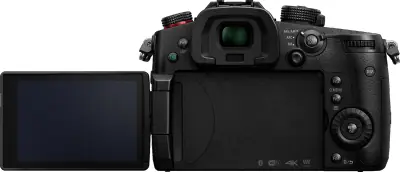

Fully Articulated Touchscreen

Panasonic Lumix DC-GH5S has a 3.2" Fully Articulated touchscreen with 1,620k dot resolution. Fully articulated screen makes this camera selfie and vlogger friendly and generally very useful for video shooting.

Electronic Viewfinder

Camera has a built-in Electronic viewfinder with 3,680k dot resolution. It has a 100% coverage and 1.52x (0.76x 35mm equivalent) magnification.

Panasonic Lumix DC-GH5S features a 10.28 megapixel Micro Four Thirds CMOS sensor with dimensions of 17.3 x 13 mm and a total area of 224.9 mm². Its native ISO range is 160 - 51,200 and expands to 80 - 204,800 in boosted mode.

Here is a sensor size comparison chart where you can see how Panasonic Lumix DC-GH5S's Micro Four Thirds sensor compares with other types of sensors:

Sensor size chart

	Sensor	Dimensions	Area	Aspect Ratio	Crop Factor
	Medium Format	44 x 33 mm	1452 mm2	4:3	0.79x
	Full Frame	36 x 24 mm	864 mm2	3:2	1x
	APS-H	27 x 18 mm	486 mm2	3:2	1.3x
	APS-C	23.6 x 15.6 mm	368.2 mm2	3:2	1.5x
	APS-C (Canon)	22.3 x 14.9 mm	332.3 mm2	3:2	1.6x
	Micro Four Thirds	17.3 x 13 mm	224.9 mm2	4:3	2x
	1-inch	13.2 x 8.8 mm	116.2 mm2	3:2	2.7x
	1/1.7-inch	7.44 x 5.58 mm	41.5 mm2	4:3	4.7x
	1/2.3-inch	6.17 x 4.55 mm	28.1 mm2	4:3	5.6x

Camera is equipped with Venus Engine 10 processor and can take pictures up to 3680 x 2760 resolution. It can also take pictures with lower resolutions like 3:2 (3840 x 2560), 16:9 (4016 x 2256), 1:1 (2752 x 2752) with 1:1, 4:3, 3:2, 16:9 aspect ratios.

Lens Mount

Panasonic Lumix DC-GH5S has Micro Four Thirds lens mount. Due to Micro Four Thirds sensor its crop factor (also called lens multiplier) is 2x. This means that a 35mm equivalent focal length of the mounted lens will be equal to its actual focal length times 2.

No Low-Pass Filter

There is no optical low-pass filter (OLPF), also known as an anti-aliasing filter, in front of the sensor. This results in a slightly sharper image but may also introduce moiré patterns and aliasing artifacts when photographing subjects with fine, repetitive patterns or details.

No In-Body Image Stabilization

The camera does not have in-body image stabilization (IBIS) so it needs lenses with optical image stabilization for vibration reduction.

Built-in Wi-Fi

Camera has a built-in Wi-Fi (802.11b/g/n, 2.4 GHz) which allows to easily transfer photos and videos from the camera to other Wi-Fi-enabled devices, such as smartphones, tablets, printers, or computers. This eliminates the need for cables and allows for quick and convenient media sharing and social media integration. It gives you the ability to control your camera remotely using a smartphone or tablet. This is particularly useful for taking self-portraits, group shots, or capturing images in challenging conditions without having to touch the camera. Firmware updates can also be downloaded and installed wirelessly.
  Check out the cameras in our database that have built-in WiFi.

Bluetooth

Camera has a built-in Bluetooth (version 4.2 LE) which lets you to connect the camera to a smartphone or a dedicated remote control device. This allows you to remotely trigger the camera, adjust settings and controls remotely through a paired mobile app. While Wi-Fi is generally faster for transferring larger files, Bluetooth can be used for small, selective transfers, it can provide real-time information about your camera's battery status, memory card capacity, and other key settings directly on your paired smartphone or smartwatch.
  Check out the cameras in our database that have built-in Bluetooth.

USB Input and HDMI Output

Panasonic Lumix DC-GH5S has a USB 3.2 Gen 1x1 (5 GBit/sec) Type-C input for data transfer and battery charging. There is a Full Size HDMI connector for video signal output.

Battery

Panasonic Lumix DC-GH5S comes with DMW-BLF19 battery pack with battery life of 440 shots.

External Storage Slots

The camera has Dual SD/SDHC/SDXC (UHS-II) card slots.

Shutter

Panasonic Lumix DC-GH5S has Electronic shutter and Mechanical Focal Plane shutter. Shutter speed can go up to 1/16000 sec with electronic shutter and up to 1/8000 sec with mechanical shutter. Camera can shoot continuously up to 12.0 fps.

Focusing

Panasonic Lumix DC-GH5S has 225 focusing points and from -5 to +18 EV detection range. Touch-to-Focus allows users to select a specific point on the screen where they want the camera to focus. This feature can be helpful for achieving precise focus in both photo and video recording. There is also face detection feature which automatically finds and focuses on faces.

Exposure

Camera's exposure metering ranges from 0 to +18 EV and you can set the exposure compensation within the ±5 EV range. You can also do exposure lock, exposure bracketing and manual exposure adjustment.

Flash

Panasonic Lumix DC-GH5S has no built-in flash but an external flash may be connected via Hot Shoe or PC Terminal. The fastest flash synchronization speed is 1/250 sec. Flash compensation can be set from -3 to +3 EV with 1/3 EV step increments.

Panasonic Lumix DC-GH5S has dimensions of 139 x 98 x 87 mm (5.47 x 3.86 x 3.43"). It weighs 660 g (1.46 lb / 23.28 oz) which is neither heavy nor lightweight.

139 mm (5.47")

98 mm (3.86")

98 mm (3.86")

87 mm (3.43")
