Fujifilm X-T20

Fujifilm X-T20 was announced in 2017 and is an APS-C (23.5 x 15.6 mm) Mirrorless camera with 24.3 Megapixel CMOS X-TRANS III sensor. Its native ISO ranges from 200 to 12,800 and expands to 100 - 51,200 in boosted mode. The camera has a Tilting 3.0" screen with 1,040k dot resolution and built-in Electronic viewfinder with 2,360k dot resolution.

Fujifilm X-T20 can capture video up to 3840 x 2160 resolution.

Here is the Fujifilm X-Tx{2} series lineup, where you can view and compare the main specifications of the cameras within the same series.

Fujifilm X-Tx{2} series lineup

	Model	Date	Sensor	Native ISO	Screen	Price
	Fujifilm X-T30 II Compare	September 2021	26.1 MP APS-C	160 - 12,800	Tilting 3.0" 1,620k dot Touchscreen	amazon B&H
	Fujifilm X-T30 Compare	February 2019	26.1 MP APS-C	160 - 12,800	Tilting 3.0" 1,040k dot Touchscreen	amazon B&H
	Fujifilm X-T20	January 2017	24.3 MP APS-C	200 - 12,800	Tilting 3.0" 1,040k dot Touchscreen	amazon B&H
	Fujifilm X-T10 Compare	May 2015	16.3 MP APS-C	100 - 51,000	Tilting 3.0" 920k dot	amazon B&H

You can view their side-by-side comparison here: Fujifilm X-T30 II vs X-T30 vs X-T20 vs X-T10.

In this section we present pros and cons of Fujifilm X-T20.

Here we are comparing Fujifilm X-T20 to its predecessor X-T10 and displaying the major changes.

For more detailed comparison between the models please visit Fujifilm X-T20 vs X-T10.

In 2019 Fujifilm X-T20 was replaced by Fujifilm X-T30. Let us now have a look at some important differences between Fujifilm X-T20 and its successor.

For more detailed comparison between the models please visit Fujifilm X-T20 vs X-T30.

Tilting Touchscreen

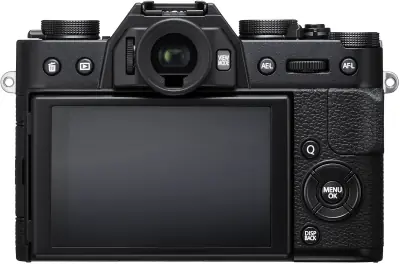

Fujifilm X-T20 has a 3.0" Tilting touchscreen with 1,040k dot resolution. Tilting screen makes this camera very useful for photography purposes but not so useful for video shooting.

Electronic Viewfinder

Camera has a built-in Electronic viewfinder with 2,360k dot resolution. It has a 100% coverage and 0.93x (0.62x 35mm equivalent) magnification.

CMOS X-TRANS III Sensor

Fujifilm X-T20 features a 24.3 megapixel APS-C CMOS X-TRANS III sensor with dimensions of 23.5 x 15.6 mm and a total area of 366.6 mm². Its native ISO range is 200 - 12,800 and expands to 100 - 51,200 in boosted mode.

The camera has CMOS X-TRANS III sensor

Here is a sensor size comparison chart where you can see how Fujifilm X-T20's APS-C sensor compares with other types of sensors:

Sensor size chart

	Sensor	Dimensions	Area	Aspect Ratio	Crop Factor
	Medium Format	44 x 33 mm	1452 mm2	4:3	0.79x
	Full Frame	36 x 24 mm	864 mm2	3:2	1x
	APS-H	27 x 18 mm	486 mm2	3:2	1.3x
	APS-C	23.5 x 15.6 mm	366.6 mm2	3:2	1.5x
	APS-C (Canon)	22.3 x 14.9 mm	332.3 mm2	3:2	1.6x
	Micro Four Thirds	17.4 x 13 mm	226.2 mm2	4:3	2x
	1-inch	13.2 x 8.8 mm	116.2 mm2	3:2	2.7x
	1/1.7-inch	7.44 x 5.58 mm	41.5 mm2	4:3	4.7x
	1/2.3-inch	6.17 x 4.55 mm	28.1 mm2	4:3	5.6x

Camera is equipped with X-Processor Pro2 processor and can take pictures up to 6000 x 4000 resolution. It can also take pictures with lower resolutions like 4240 x 2832, 6000 x 3376, 4000, x 4000, 4240 x 2832, 4240 x 2384, 2832 x 2832, 3008 x 2000, 3008 x 1688, 2000 x 2000 with 1:1, 3:2, 16:9 aspect ratios.

Lens Mount

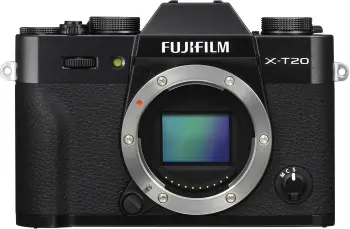

Fujifilm X-T20 has Fujifilm X lens mount. Due to APS-C sensor its crop factor (also called lens multiplier) is 1.5x. This means that a 35mm equivalent focal length of the mounted lens will be equal to its actual focal length times 1.5.

No Low-Pass Filter

There is no optical low-pass filter (OLPF), also known as an anti-aliasing filter, in front of the sensor. This results in a slightly sharper image but may also introduce moiré patterns and aliasing artifacts when photographing subjects with fine, repetitive patterns or details.

No In-Body Image Stabilization

The camera does not have in-body image stabilization (IBIS) so it needs lenses with optical image stabilization for vibration reduction.

Built-in Wi-Fi

Camera has a built-in Wi-Fi (802.11b/g/n, 2.4 GHz) which allows to easily transfer photos and videos from the camera to other Wi-Fi-enabled devices, such as smartphones, tablets, printers, or computers. This eliminates the need for cables and allows for quick and convenient media sharing and social media integration. It gives you the ability to control your camera remotely using a smartphone or tablet. This is particularly useful for taking self-portraits, group shots, or capturing images in challenging conditions without having to touch the camera. Firmware updates can also be downloaded and installed wirelessly.
  Check out the cameras in our database that have built-in WiFi.

USB Input and HDMI Output

Fujifilm X-T20 has a USB 2.0 (480 Mbit/sec) input for data transfer. There is a Micro HDMI connector for video signal output.

Battery

Fujifilm X-T20 comes with NP-W126S battery pack with battery life of 350 shots.

External Storage Slots

The camera has a single SD/SDHC/SDXC (UHS-I) card slot.

Shutter

Fujifilm X-T20 has Focal Plane shutter. Shutter speed can go up to 1/32000 sec with electronic shutter and up to 1/4000 sec with mechanical shutter. Camera can shoot continuously up to 14.0 fps.

Flash

Fujifilm X-T20 has a built-in flash with maximum range of 5.00 m at ISO 100 and also accepts external flash which can be connected via Hot Shoe. The fastest flash synchronization speed is 1/180 sec.

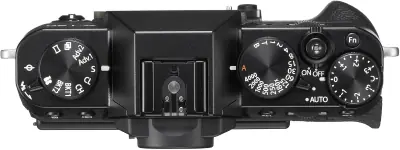

Fujifilm X-T20 has dimensions of 118 x 83 x 41 mm (4.65 x 3.27 x 1.61"). It weighs 383 g (0.84 lb / 13.51 oz), so it is a lightweight camera.

118 mm (4.65")

83 mm (3.27")

83 mm (3.27")

41 mm (1.61")
